Upgrade Your Garage: Multi-Unlock Two Post Lift with Custom Solutions

Two Post Car Lift with Multiple Lock Release Modes | Custom Arm & Adapter Options to Solve Your Garage Operation Pain Points

For auto repair shop owners, lift safety, operational efficiency, compatibility with different vehicles, and long-term cost control are your top concerns. Many generic two-post lifts have rigid lock release designs, poor adaptability for special chassis vehicles, non-adjustable lifting arms, and inflexible adapter configurations, bringing hidden safety hazards and low work efficiency to your daily maintenance work.

Our upgraded two post car lift is equipped with dual-side manual unlock, single-side manual unlock, and electric unlock three optional safety lock systems, with flexible customizable lifting arm sizes and two types of lifting pad adapters, targeted to solve the most common pain points of repair garages.

Differences, Features & Applicable Scenarios of Three Lock Release Systems (Solve Safety & Operation Troubles)

1. Single-Side Manual Unlock

Structural & Working Principle

The safety locks on both left and right columns are mechanically linked; you only need to pull the unlocking handle on one single side, and the locks on both posts disengage synchronously to lower the lift.

Core Advantages

• Solve Pain Point: Traditional dual-side unlock requires staff to walk back and forth between two posts to release locks separately, wasting time and increasing fatigue during frequent lifting/lowering operations.
• One-person single-side operation, saves walking time, greatly improves work efficiency for high-volume tire shops and fast lube workshops.
• Simple mechanical structure, fewer vulnerable electric parts, low failure rate, easy on-site maintenance, lower long-term repair cost.

Minor Defect

Mechanical connecting cable needs regular tension adjustment to keep synchronous unlocking precision.

2. Dual-Side Manual Unlock

Structural & Working Principle

Left and right column safety locks work independently. Operators must manually pull the unlocking handles on both posts respectively to fully release the locking mechanism before lowering the lift.

Core Advantages

• Solve Pain Point: Prevent accidental lowering caused by misoperation or damaged linkage cable on single-side unlock model; more conservative safety logic for shops prioritizing extreme safety standard.
• Independent lock structure, if one side has mechanical jamming, the other side will not be affected, convenient for fault troubleshooting.
• Favored by inspection stations, official authorized 4S stores with strict safety operation regulations, fully compliant with strict local workplace safety audit requirements.

Minor Defect

Needs two-side operation, slightly slower operation rhythm for repetitive jobs.

3. Electric Unlock (Electromagnetic Unlock)

Structural & Working Principle

Built-in electromagnetic solenoid devices on both lock latches; press one button on the control box, both side locks automatically retract synchronously electrically to unlock for descending.

Core Advantages

• Solve Pain Point: Manual unlocking requires bending down and pulling handles repeatedly, causing waist strain for technicians doing all-day maintenance work; electric unlock realizes one-touch effortless operation.
• Most labor-saving, fastest operation speed, ideal for high-throughput busy repair shops, significantly boost daily service throughput.
• Integrated with lift lifting/lowering control circuit, interlock protection design: lift cannot lower before full unlock, effectively prevent misoperation risks.

Minor Defect

Relatively higher upfront purchase cost; relies on electrical components, need regular inspection of wiring and solenoid parts.

Lifting Height Characteristic & Customer Pain Solution

Many cheap lifts have insufficient maximum lifting height, making it hard for technicians to stand upright under vehicles for exhaust replacement, chassis overhaul, suspension repair, or four-wheel alignment work; some models have too small minimum height, unable to access ultra-low sports cars and modified low-profile vehicles.

Our two post lift adopts optimized upper stroke design:

1. Sufficient maximum lifting clearance, creates spacious under-vehicle working space, technicians work comfortably without hunching for long-time complex chassis maintenance, relieving occupational strain and improving repair quality;
2. Reasonable minimum retracted height design, compatible with ordinary sedans, SUVs, pickup trucks, as well as low-slung modified sports cars that ordinary lifts cannot lift, expanding your shop’s service range and attracting more special vehicle business;
3. Stable lifting speed without sudden jitter at any height position, locks firmly at arbitrary stopping heights, avoids slipping risks during long-time repair work.

Two Types of Lifting Pads: Standard Insert-Type Pad vs Upgraded Screw Adjustable Pad

Standard Configuration: Insert-Type Lifting Pad (Included in Base Price)

• Feature: Fixed height inserted design, quick plug-in installation, sturdy structure, cost-effective, meets daily conventional vehicle lifting demands for oil change, tire replacement, routine inspection.
• Solve Pain Point: Control your initial equipment investment budget, no extra spending for conventional general repair business, durable and not easy to deform under frequent daily use.

Optional Upgrade: Screw Adjustable Lifting Pad (Extra Cost, Higher Grade & Better Quality)

• Feature: Height freely adjustable via rotating screw thread, precise fine-tuning of pad height; thicker high-strength steel structure, stronger compression resistance, anti-cracking, longer service life than insert type.
• Solve Core Pain Points for Customers:
  1. Different vehicles have inconsistent chassis lifting point heights; fixed-height pads lead to unbalanced force, tilting risk, or unable to fit lifting points. Screw pads adjust height individually to perfectly match uneven chassis support positions, ensure balanced vehicle stress, protect chassis edge from indentation and damage.
  2. For modified vehicles, lifted trucks, cars with chassis guard plates, you can fine-tune pad height to find suitable support position, greatly expanding vehicle adaptability of your lift.
  3. Thickened wear-resistant structure resists long-term heavy load compression, less replacement frequency, lower your consumable replacement expense in long run.

Standard Arm Spec & Customization Service to Fit Special Vehicle Demands

Factory Standard Arm Sizes

• Long arm: Telescopic adjustable range 750mm–1180mm
• Short arm: Telescopic adjustable range 750mm–1140mm Standard arms cover almost all mainstream passenger cars, compact and mid-size SUVs, light pickups in the market, flexible telescopic design to align four lifting points accurately, prevent eccentric load during lifting, eliminate hidden safety trouble caused by misplaced support.

Custom Size Modification Service (Available On Demand)

Customer Pain Point Solved

Many workshops encounter long-wheelbase large SUVs, extended-length commercial vehicles, or ultra-short wheelbase mini vehicles; standard arm extension range cannot reach reasonable lifting points, resulting in inability to lift or unstable lifting state, losing potential business.

Our Solution

We support non-standard customized length modification for lifting arms according to your actual vehicle types: lengthen arm stroke for long-wheelbase vehicles, shorten arm limit for mini cars, adjust arm thickness and load-bearing structure matching customized length, guarantee rated load capacity and structural safety after modification. No matter your local mainstream vehicle models, we can tailor arm specifications to match your actual business scenarios perfectly.

Why Our Two Post Lift Helps Your Garage Gain More Competitive Edge

1. Multiple unlock mode options, selectable per your safety management standard and work efficiency demand, solve operation efficiency & safety management troubles in a targeted way;
2. Flexible pad upgrade solution, balance your startup budget and long-term vehicle compatibility requirement;
3. Standard arms for universal use + customizable arm sizing, break the limitation of applicable vehicle types, help you take more business orders competitors cannot handle;
4. Optimized lifting height design improves technician working comfort and repair efficiency, reduce employee turnover caused by high-intensity bending work;

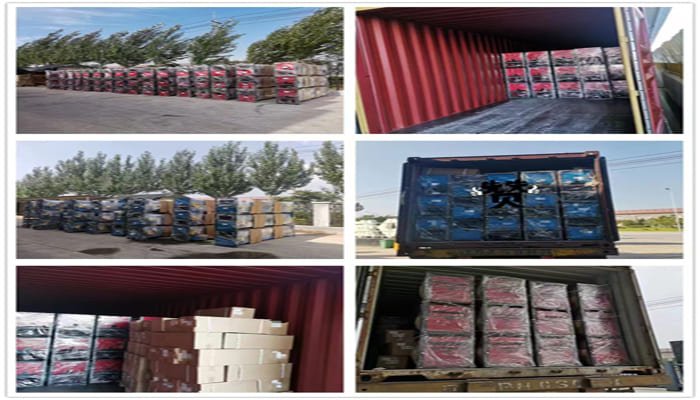

5. Strict factory load test before delivery, export-standard seaworthy packaging, convenient container loading (as shown in our container shipment case), suitable for global importers, distributors and garage owners.

Get Tailored Solution for Your Auto Repair Shop

Whether you plan to purchase standard-spec two post lifts for chain repair shops, or need customized unlocking mode, lifting pad type, lifting arm dimension for your special business needs, our professional engineering team can provide targeted quotation, technical parameter sheet and installation guidance. Contact us now to get a cost-effective lifting equipment solution that matches your garage operation mode.
