Vulcanizing Machine

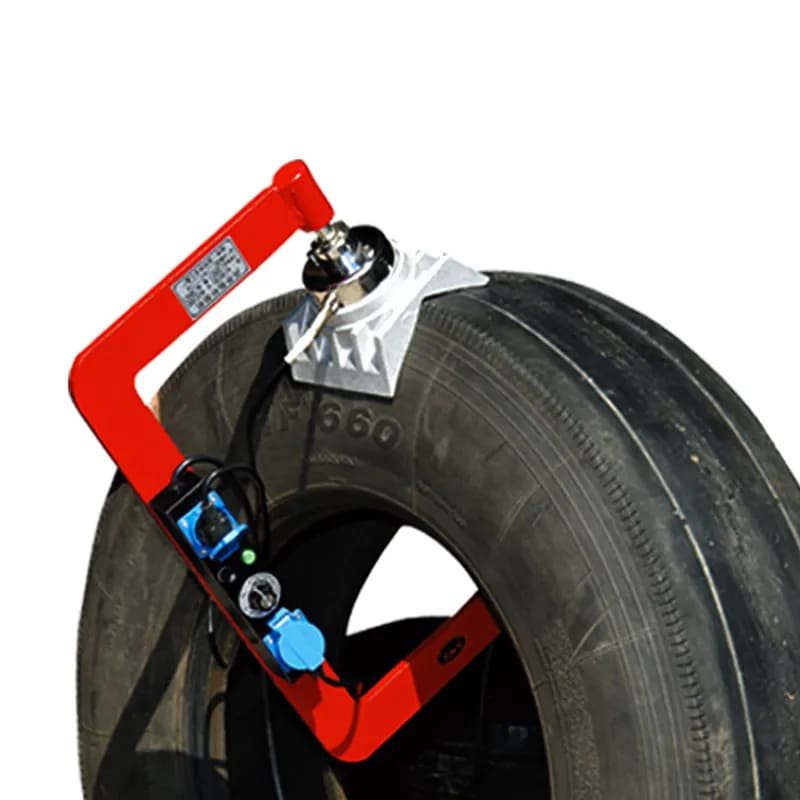

The truck type vulcanizing machine is designed for 8.25-20 to 12.00-20.9R-12R tire wound heat vulcanization vulcanizing machine, a timer and an automatic temperature control device, can be used for single and double sided sulfide sulfide, and with a sidewall, replaceable tread, tire shoulder seven piece vulcanization board, use 220V single-phase power, the operation of the equipment convenient, durable, is the most economically affordable, tire repair equipment.

Advantage:
This vulcanizing machine can constant

temperature automatically in 150°-180°.

Timing or handle control the time all be ok

The area of vulcanization can be increased in handle

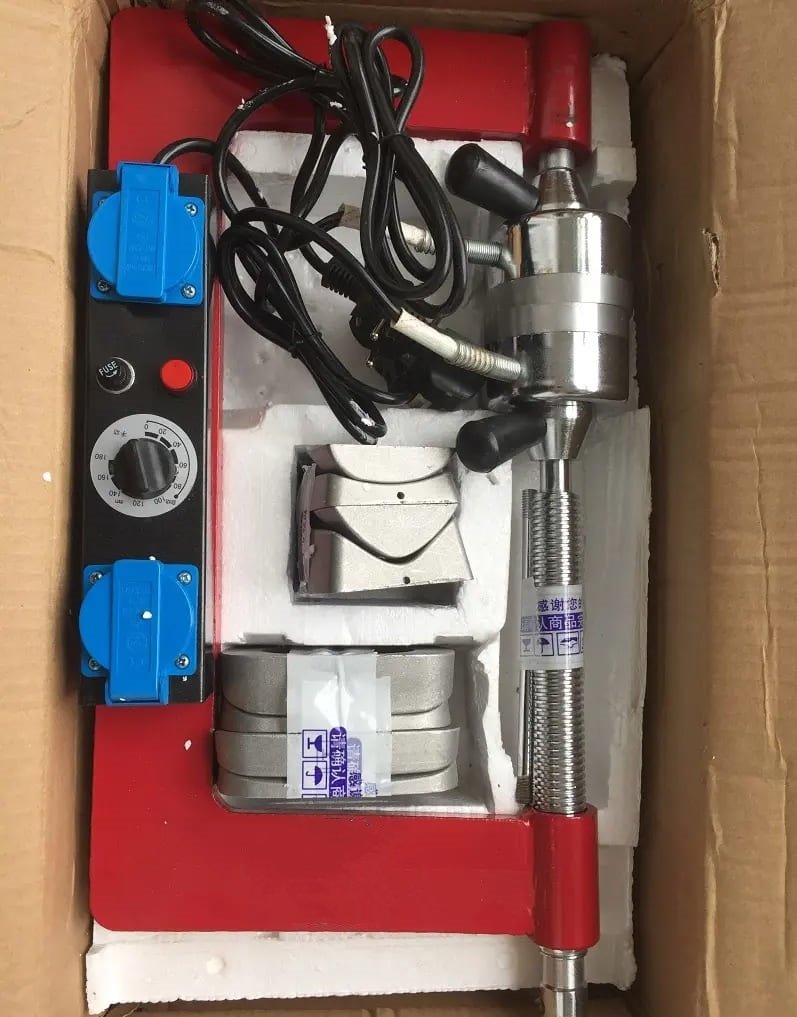

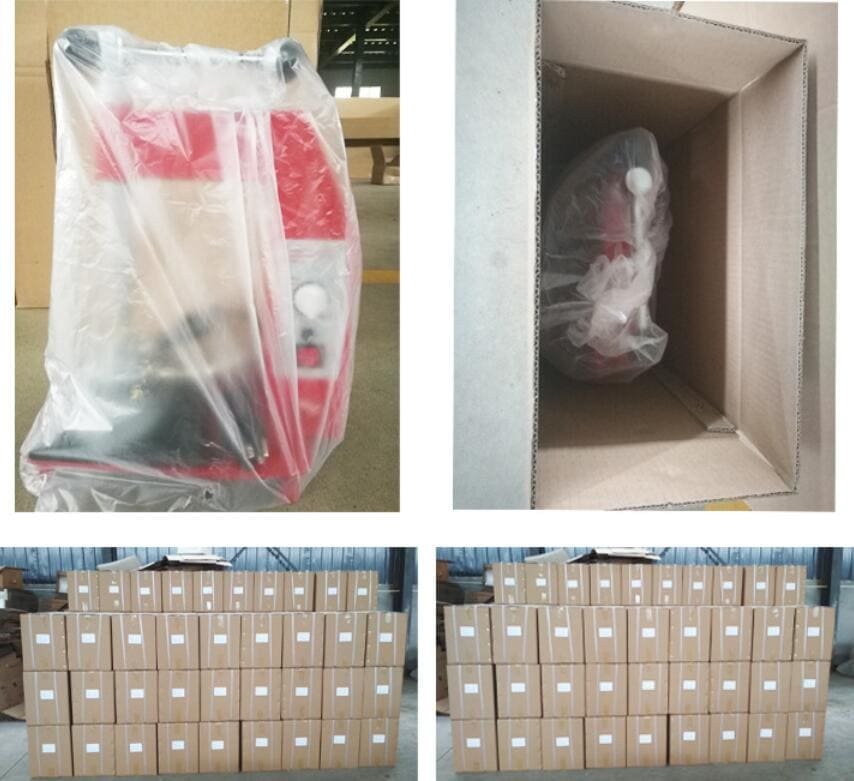

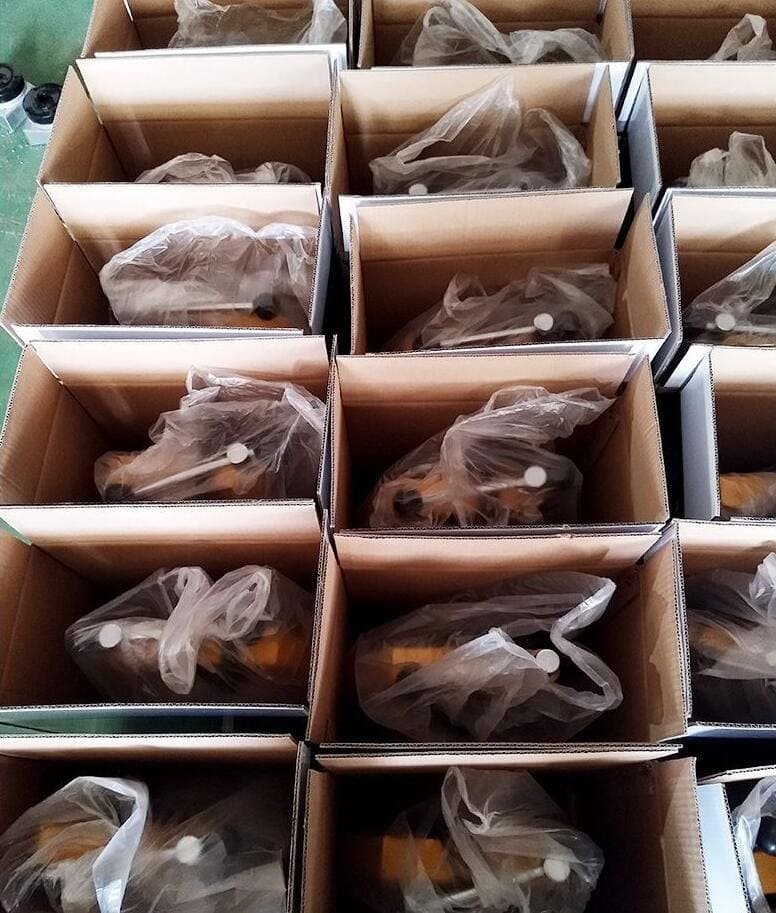

Packing and delivery

N.W./G.W. :   17/18kg

package : 1pcs/carton

size :  70*18*42cm

Specification:

Place of Origin : Tianjin, China

Type: Electric Tool

Main Material: Carbon Steel

Size: 65*40*18cm

Warranty: 1 Years

Output voltage:220V;

Output power: 2*500W;

Vulcanizing temperature:145-150 degree centigrade;

Vulcanizing time:about 10 minutes(for 3mm thick vulcanizate/rubber);

Repair area: 100*80mm;

Net weight: about 22 kg

Tire application: 8.25-20, 12.00-20 (9R-12R)

Operation:

1.Make clean of wound point, and make mark;

2. Sanding the wounded point, and the sanding area is little bigger than the broken point;

3. Put the glue onto the broken point evenly;

4. Make a rubber sheet which fit for the broken point, and put it on the point. If the broken point is big, put more one rubbersheet on it;

5. Make the heater onto the sheet, and adjust the screw rod to press the sheet tightly, and stable the tyre;

6.Turn on the button and to heat the sheet, when the broken area is vulcanized well, to turn off the switch. Loose the screwrod and take off the tyre.

Note: as to how much vulcanizing time, it depends the vulcanizing area and thickness of rubber sheet.
